Network Connectivity HW

Module

  1. CFP - Probably the old big double square SC sized module on (cisco) swtiches, low port density per blade
  2. SFP = Small Form Factor Pluggable, two lanes.
  3. SFP+ (10g Twinax, ethenet "GBIC" to fiber optic module). nearly square rectangle
  4. SFP28 = SFP up to 25G
  5. QSFP: Qaud SFP. Infiniband QDR, FDR, EDR. 40-gbps Ethenet. Wider rectangle than SFP
  6. QSFP+:
  7. QSFP28: same size as QSFP. Can use 100GBASE-SR4. EDR - 4 lanes of 25.78 Gbps
  8. QSFP56: same size as QSFP. Can use 200GBASE-SR4. HDR - 4 lanes of 50 Gbps
  9. QSFP-DD: even wider than QSFP. 8 lanes of 200/400 (eg on 2nd port of a Mellanox IB card)
  10. OSFP : octal SFP - 8 lanes of 400
Ref: Nvidia/Mellanox Connector definittion

This thread by Kenneth Finnegan breaks down the 100G-LR4 showing 4 prisms to split the wavelength :)

Connector

  1. RJ45
  2. LC: narrow/compact connector for use with SFP transceivers, fit the width of SFP module
  3. SC (?): older wider optic for use with GBIC transceiver (from early 90s), need the width of (?CFP) module.
  4. MPO/MTP-8,
  5. MPO/MTP-12 - the oversized-RJ45 looking connector that has 8 or 12 fibers in it for the QSFP sized optic transceiver ?
  6. MTP : more freq use as trunk cables ?
  7. DAC - Direct Attach Copper
  8. AOC - Active Optical Cable. eg fiber fused to QSFP adapter
  1. 100GBASE-SR4 vs 100GBASE-SR10.

Optic cables

  1. Single-mode: For Long Range eg between buildings
  2. Multi-mode: for Short Range.
  3. SR - Short Range. max 100 meter. often 850nm ?
  4. LR - Long Range.

OM

ref: https://en.wikipedia.org/wiki/100_Gigabit_Ethernet

Cisco 100G-QSFP28-SR4: uses a 12-fiber standard QSFP MPO/MTP cable for connectivity
(4 Tx and 4 Rx, each lane providing 25 Gbps of throughput)

100GBASE-SR10 optics use a 2×12-fiber or 24-fiber strand MPO/MTP cable for connectivity
(10 Tx and 10 Rx, each lane providing 10 Gbps of throughput).


MMF = Parallel Multi-Mode ribbon Fiber

MMF FDDI
MMF OM1
MMF OM2

Laser optimized multimode fiber oft use with 100GBASE
MMF OM3 - 50/125 um (2003) 1500 MHz*km @ 850nm -- OFNP ?
MMF OM4 - 50/125 um (2008) 3500 MHz*km @ 850nm -- Plunum ?

MMF OM5
SMF OS1
SMF OS2

Electrical Plug Type

If you are in charge of building or expanding a data center, the charts below may help you get the right vocabulary to talk to electricians effectively.

The connectors are designated Male and Female depending on whether they have the plunges sticking out or holes on them, respectively. These names are now changed to the more politically correct Plug and Receptacle. In some literature, receptacles are also called outlets.

Table 1: Most commonly used Receptacles in Data Center.
(NEMA) 5-15P 115 V, 15 AMP, Plug
Standard US 3 plunge household connector.
(NEMA) 5-15R 115 V, 15 AMP, Receptacle (Socket)
(NEMA) 5-20P 115 V, 20 AMP, Plug
Variation of std US 3 plunge plug, with one "horizontal" connector
(NEMA) 5-20R 115 V, 20 AMP, Receptacle
(NEMA) L5-20P Twist Lock, 115 V, 20 AMP, Plug
(NEMA) L21-L20P Lock, 205 V, 20 AMP, Plug.
This is a 3 phase Y, 20A plug with ground in the middle pin, 4 pins on a circumference, one with a locking notch. Maybe a safer design than L6-20.
But PDU I have seen so far for them always have 5-20 outlets, never seen them with 208V capable C13 outlets, which maybe why they were phased out in favor the L6-30.
Additional ref, diagrams from customAVrack.com
(NEMA) L21-L20R Lock, 205 V, 20 AMP, Receptacle
(NEMA) L5-20R Twist Lock, 115 V, 20 AMP, Receptacle
(NEMA) L5-30 Twist Lock, 115 V, 30 AMP
(NEMA) L6-20P Twist Lock, 220 V, 20 AMP, Plug
(NEMA) L6-20R Twist Lock, 220 V, 20 AMP, Receptacle
(NEMA) L6-30P Lock, 220 V, 30 AMP, Plug
(NEMA) L6-30R Lock, 220 V, 30 AMP, Receptacle
Hubbell 60Amp 60Amp 3-phase military grade connector :)
IEC 60309. These seems to be color coded, so this typle is always in blue. For data center installation this is the only pig-tail i have seen.
PIN & SLEEVE PLUG 60AMP 3Phase 250VAC 3P 4W IP67 WATERTIGHT
Should be 60A per Line (phase). 80% continuous draw - 48A. Multiply by 3 lines of 120V each, get 17.3 kVA. 17.3 kW is a common rating for rack PDU with such 60A plug, eg APC .


All the NEMA twist lock presented have essentially the same shape. Their main difference is the diameter of circle, with L5-20 having the smallest diameter, L6-20 being in the middle, and L6-30 is the largest. When checking connector type, it is best to read the engravings on them to see which exact connector it is!

conductor size and current rating
  1. awg 14 wire for 15 amp circuit
  2. awg 12 wire for 20 amp circuit
  3. awg 10 wire for 30 amp circuit
The conductor size is independent of voltage. If voltage is increased, eg to 400V, then it can deliver more power! (Power = Volt * Amp)

Table 2: Common plug types for Servers.
In IEC scheme, odd numbers are receptors, even are plugs (the ones with the pin out). In a politically incorrect mnemonics, females are odd, males are even.
IEC C13 (10A) vs UL/CSA C13 (15A)

115V or 220V, 10 Amp.

Standard computer power cord. This plug connects to C14.

A power cord would have a plug on it (left picture).
A socket/receptacle version is used on the surge bars (right picture).


US use newer UL/CSA standard. Rest of world use originall IEC standard.  both use the number 60320-1.
15 Amp rating per UL 498. ref: Interpower post
IEC C14

Counterpart of C13.

Standard computer power supply AC inlet socket, or for cord in new cabinet power distribution bar.
A cord with IEC C13 on one end and IEC C14 on the other can be plugged in end to end and work as an extension cord. This is an international standard server power cord, works on 115V or 220V.

The back panel of equipment would have a socket/receptacle/inlet on it (left picture).
Whereas on a power cord, it would be called a plug (right picture).

IEC C15 Slightly diff than C13 in that it has a notch. e.g. used by HP-UX rack servers. This one can plug into C14, but specific C16 socket require this plug connector.
IEC C16 Socket for C15.
IEC C19 Typically used in large servers and chassis for modular/blade server.
Rated 16A Max
IEC C20 Male counterpart of C19








Table 3: Other computer plugs.
IEC C5 and IEC C6 Compact 3 plonges connector. e.g. Dell laptop power supply AC input
IEC C7 and IEC C8 Compact 2 plonges connector. e.g. Dell laptop power supply AC input.



Etc


Table 2: Misc.

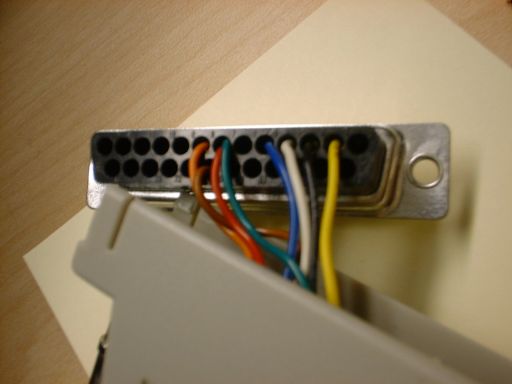

Sun DB25 serial to RJ45 console port wiring

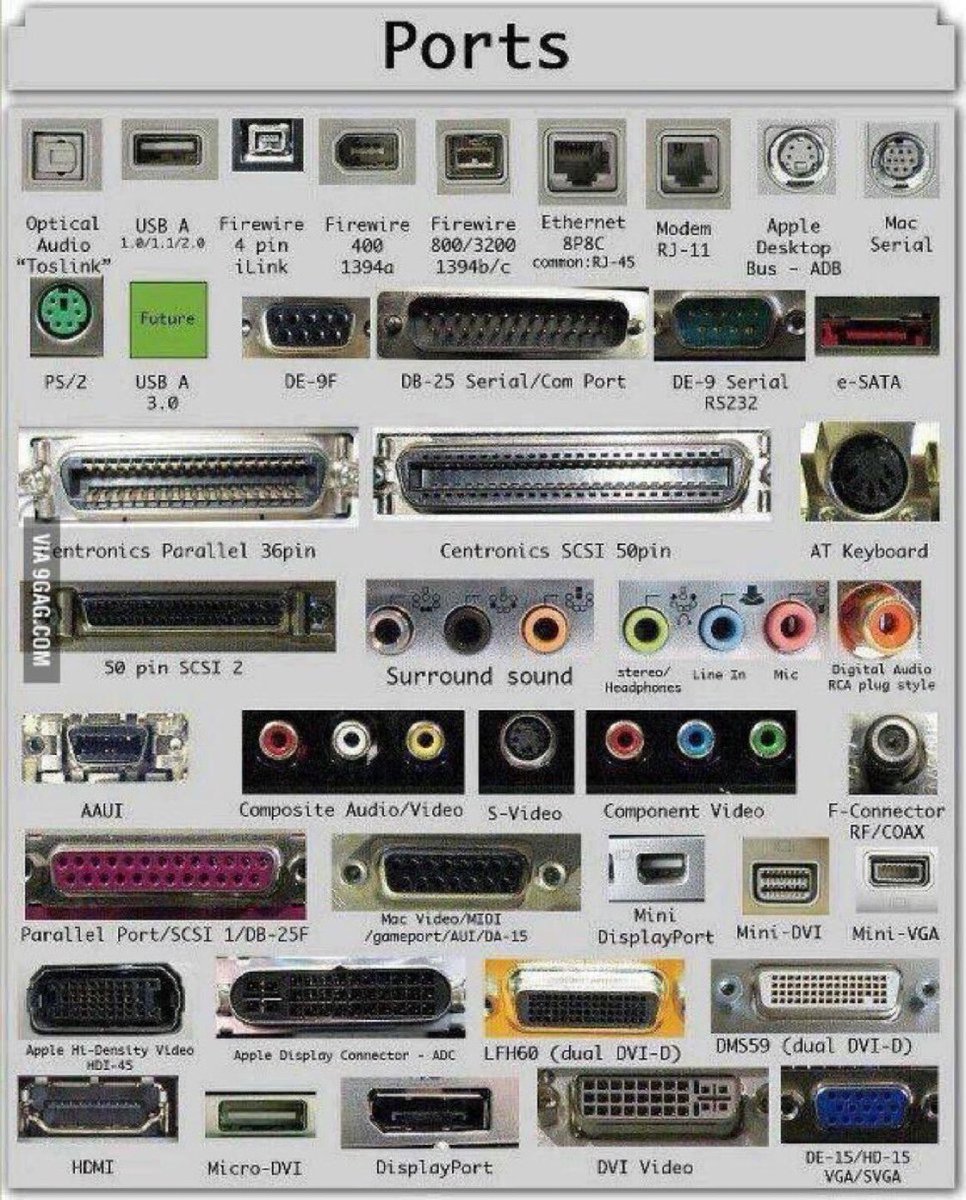

picture with a matrix of variety of computer ports
Credit: Vala Afshar
SATA vs SAS vs NVME, connector diagram
diagram of sata vs nvme
Source and more details:
overclock3d.net SATA vs SAS vs NVME




Recommended Gears

These are from 2005-ish era, mostly have newer gears now...

Megger (SMF) MMC850 Multi / single core a.c. clampmeter. Manage a Data Center? Get this "amp meter" and take the guest work out of whether you are overdrawing the circuit! Cost is about $250.

Fluke EtherScope

Ideal power distribution bar for Data Center Cabinet:
Bay Tech PDU21A-30 w/ 12 outlets. Vertical mount. $119
Another model with 24 outlet for $159.
http://www.buypowergear.com/30a_vertical_pdu/1110.asp

Geist/Flexiduct VRELN080-103C13TL6 8 outlet, rack mount or vertical. $179
http://www.buypowergear.com/30a_vertical_pdu/8083.asp

Bay Tech Remote Power Control L6-30P w/ 20 IEC C13 receptables, at $563 though.
This allow one to telnet to the power strip and turn on/off an individual receptacle. Also has a build in ampmeter to tell the amount of current draw.
http://www.buypowergear.com/baytech_rpc_30a_vertical/rpc28a-30nc.asp


Power Rating

I am very fuzzy about this. But here are some notes. take them with a mountain of salts!! =). 3-phase power. Multiply by Square Root of 3 , or 1.732. 80% sustained/continuous utilization, mult by 0.8 Ref: 3 Phase Power explained(From Raritan who sell PDU).

60 Amp Hubbell PDU with 208V outlets:

208V * 60 Amp * sqrt(3) * 80% = 17.2 kVA (which work out to same as kW IIRC).


Links

A useful NEMA chart.
Wikipedia IEC Connector
StayOnline This page has a handy list of NEMA and IEC plug/socket drawing and cables, voltage, phase info, etc.
InterPower Another web site selling cables with lot of nice pictures.
Chan's Pinouts Page Very detailed info about many computer plugs pinouts.

Electrical Unit Conversion(formulas for converting between W and VA).
